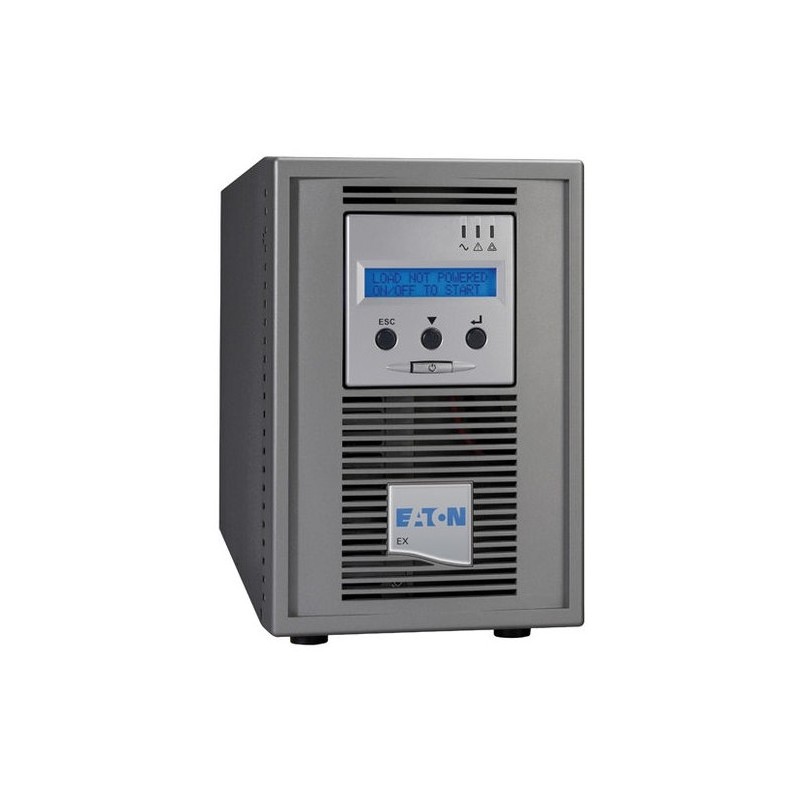

Eaton EX 1500VA Tower

Eaton EX 1500

EX 1500VA / 1350W

68183

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.



- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options

- Available in Tower or Rack/Tower convertible versions (including short-depth versions)

- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption

- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up

- Multilingual LCD display for easy operation, access to measurements and customized set-up

- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
CertificationCE, TüV GS, CB report, UL 1778 cUL CSA 22.2
Depth490 mm
Form factorTower
Height242 mm
Operating temperature (T-T)0 - 40 °C
SafetyIEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD)
Weight18000 g
Width153 mm
