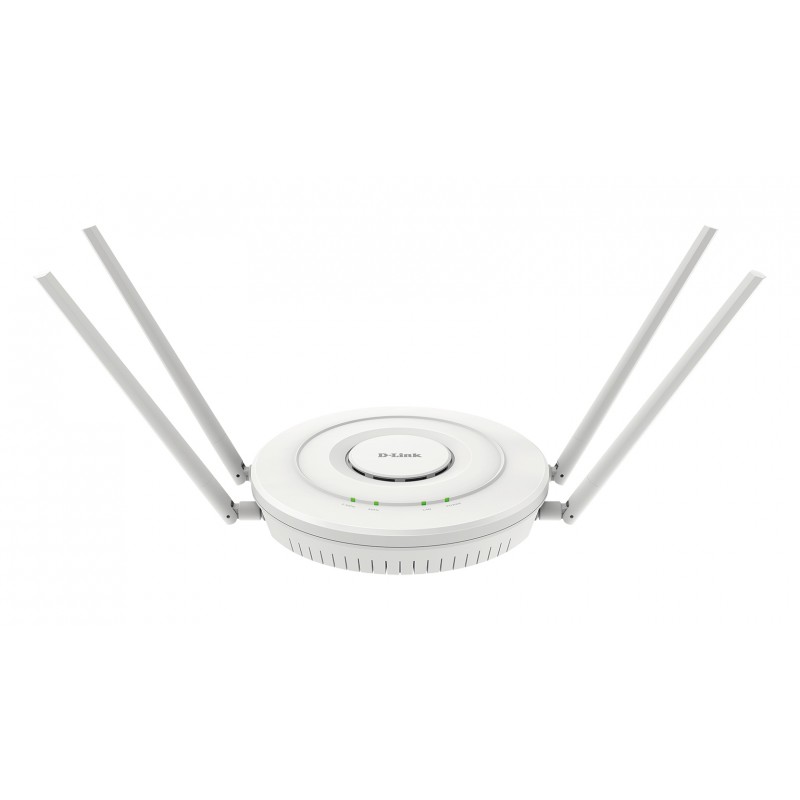

D-Link DWL-6610APE
D-Link DWL-6610APE D-Link DWL-6610APE D-Link DWL-6610APE D-Link DWL-6610APE D-Link DWL-6610APE D-Link DWL-6610APE

D-Link DWL-6610APE

802.11b/g/n/ac/a, 2.4/5 GHz, 3/4 dBi, SSID, VLAN, WMM, PoE, 10/100/1000BASE-T LAN, 205 x 39 mm

DWL-6610APE

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Performance without Compromise

The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.



Wireless AC 1200

Maximum combined wireless speed of 1200 Mbps.



Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including station isolation.



Dual Band

Supports both 2.4Ghz and 5Ghz bands simultaneously.



Unified Wireless

Access points can be managed by unified wireless controller.



Smart Design

The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.



Band Steering technology

With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.



Versatility Built as standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.



Secure and Green Design

The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.



Fast Seamless Roaming

Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.



Management platforms

D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.

DWL-6610APE Management platforms



Simultaneous Dual-Band

Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band
CertificationCE, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043
Ethernet LAN (RJ-45) ports1
Height39 mm
Housing materialPlastic
Operating temperature (T-T)0 - 40 °C
Weight476 g
Width205 mm

DWL-6610APE.pdf

D-Link DWL-6610APE Data Sheet

Download (508.62k)
