D-Link DIR-X1860
D-Link DIR-X1860 D-Link DIR-X1860 D-Link DIR-X1860 D-Link DIR-X1860 D-Link DIR-X1860 D-Link DIR-X1860

D-Link DIR-X1860

WLAN 802.11a/b/g/n/ac/ax, 4 x Gigabit Ethernet, 165.63 x 224.1 x 65.03, 525.4g

DIR-X1860

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Wi‑Fi 6 has arrived. Connect to better Wi‑Fi.

Upgrade your home router to next-generation Wi-Fi technology. Enjoy Wi-Fi 6 innovations that deliver unprecedented capacity, reliability and security for all your devices at once.

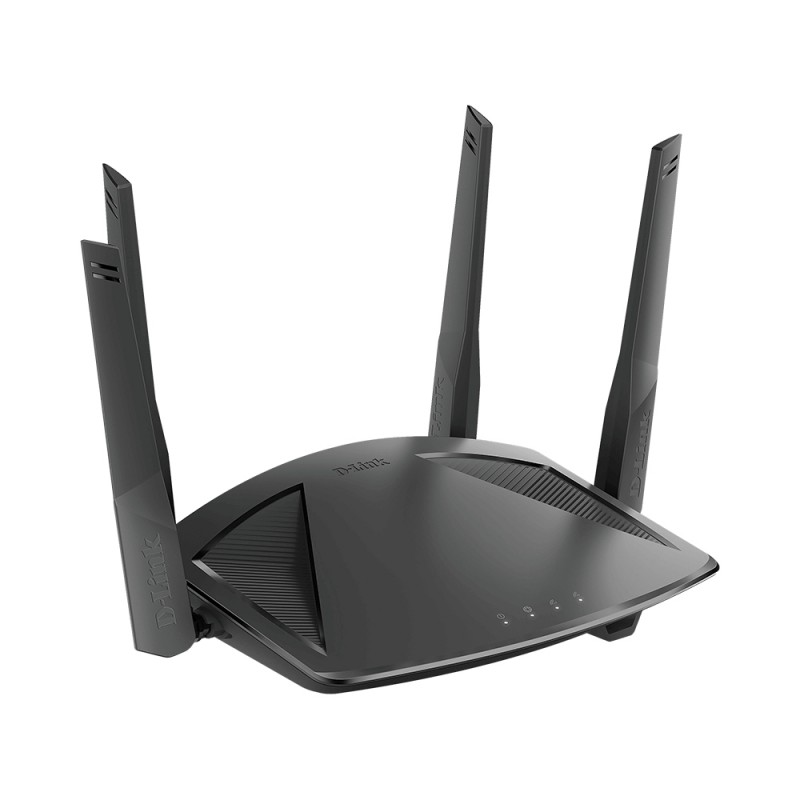

DIR-X1860 AX1800 Wi-Fi 6 Router with purple diamond shapes and wireless waves

Wireless speeds and efficiency the Wi‑Fi 6 way.

Wi-Fi 6, also known as 802.11ax, is the next-generation standard in Wi-Fi technology. Wi-Fi 6 has significant improvements on the previous 802.11ac Wi-Fi standard. Now you can watch, game and browse at a faster and more efficient rate from every room in the house and with more devices than ever.



38% Faster

Faster



Boost to a massive 1024-QAM with Wi-Fi 6, and use up to 4 simultaneous streams to deliver combined Wi-Fi speeds of up to 1800 Mbps2.



x4 Capacity

OFDMA greatly increases your total number of devices you can connect to around your home.



x4 Efficient

Built-in power amplifiers boost your range, and beamforming and MU-MIMO deliver higher bandwidth to all your devices at once with precision.



A new type of Wi‑Fi that’s even faster.

Bring home next‑gen Wi‑Fi 6 speeds of up to 1.8 Gbps. Experience a jump of 90% faster speed on the 2.4 GHz band and nearly 40% faster speed on the 5 GHz band, for a better way to enjoy snappier browsing, 4K streaming and online gaming.



Futuristic devices Built for tomorrow’s tech, today.

Wi-Fi 6 works by using 1024-QAM to provide a signal that packs in a lot more data, and a 160 MHz for a wider channel, that results in a lot faster Wi-Fi with unprecedented efficiency. Now you can enjoy more of the latest tech like virtual reality without any stutter, vivid 4K streaming, and faster file downloads.



x2 Bandwidth allowance

Boost from Wireless AC’s 80 MHz to double the channel width of Wi-Fi 6’s 160 Mhz, for a faster connection from router to the device.



38% Higher throughput

Wireless AC’s 256-QAM is outperformed by Wi-Fi 6 which uses 1024-QAM to carry 10 bits per symbol instead of 8 bits, improving raw speeds by 38%.



Coverage that reaches further.

4 high-gain external antennas, and built-in power amplifiers work together to generate a broader and more reliable Wi-Fi signal to reach more rooms and provide coverage throughout your home2.



Multi‑device household? No problem.

Wi-Fi 6 uses a combination of OFDMA and MU-MIMO technology to increase the total number of devices your network can effortlessly handle by up to 4x, so you can bring more of the latest tech into your smart home. And OFDMA transmits to multiple devices simultaneously to make sure everyone using the home Wi-Fi uses it with unprecedented efficiency.



880 MHz Processor

With far more processing power over any common Wi‑Fi 5 router, the DIR‑X1860’s dual‑core 880 MHz CPU can tackle huge amounts of data transfers, so you can enjoy lag‑free gaming and vivid 4k//HD streaming without buffering.

Wi‑Fi 6 has the latest security, with powerful encryption.

Privacy has become essential to digital life. With a built‑in firewall (NAT), automatic security and firmware updates and backups, a VPN wizard for virtual private networking, and the most advanced Wi‑Fi 6 security, the DIR‑X1860 provides peace of mind while you’re online.



Firmware Always up to date.

Firmware automatically stays updated, making sure you always have the latest security. The Dual Image feature saves a recovery image before any update, so you’re always backed up.



Encryption lock. Encrypted security.

Built-in 128-bit encryption is the latest advanced Wi-Fi security standard available, bringing a new era of wireless encryption and greater privacy to all your devices at home.



Quick VPN

When you’re out and about, Quick VPN lets you connect to the internet as if you’re at home, making connections more secure, and allowing you to access online videos and content like you’re at home.



You’re the boss.

Set the ground rules to keep your children safe online. Whether you need to get everyone around the table for a meal, it’s time for homework or you need a break from the screens, the DIR-X1860 comes with parental controls on the D-Link Wi-Fi mobile app so that you’re always in charge.



Full control

Find out which devices are connected to Covr, created schedules, check login credentials, reboot the system hand-free



Guest Wi-Fi zone

Set guest logins for when you have visitors and block any devices you don’t know.



Parental Controls

Manage internet access with profile-based parental controls.



D-Link Wi-Fi app's dashboard on a phone. Easy setup. Convenient controls.

Setup is quick and easy with the free D-Link Wi-Fi app. Follow the on-screen step-by-step instructions to get everything up and running in no time.



The most popular way to test your internet speed, built in.

Speedtest by Ookla is built into the router and is the definitive way to measure the true speed of your Router-to-ISP connection by using the free D-Link Wi-Fi app.



Battery-saving technology Green technology that saves your battery life.

Target Wake Time (TWT) automatically helps reduce battery consumption for all your connected devices by devising when and how often transfers are required, TWT then automatically conserves energy and helps save battery life on your devices.



Amazon Echo Dot and Google Home Mini Voice control with Alexa and Google Assistant.

"Hey... pause the internet for the kids"

Take control of your network just by using your voice with Amazon Alexa or Google Home devices. Receive instant audio alerts about network updates, check on the security status of any device, and more.
CertificationFCC, CE, IC
Depth224.1 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports4
Height65.03 mm
Housing materialPlastic
Operating temperature (T-T)0 - 40 °C
Power source typeAC
Weight525.4 g
Width165.63 mm
Product colourBlack
Works with Amazon AlexaY
WLAN data transfer rate (first band)574 Mbit/s
WLAN data transfer rate (second band)1200 Mbit/s
Web-based setup wizardY
Indication lightY

dir-x1860.pdf

D-Link DIR-X1860 Data Sheet

Download (2.84M)
