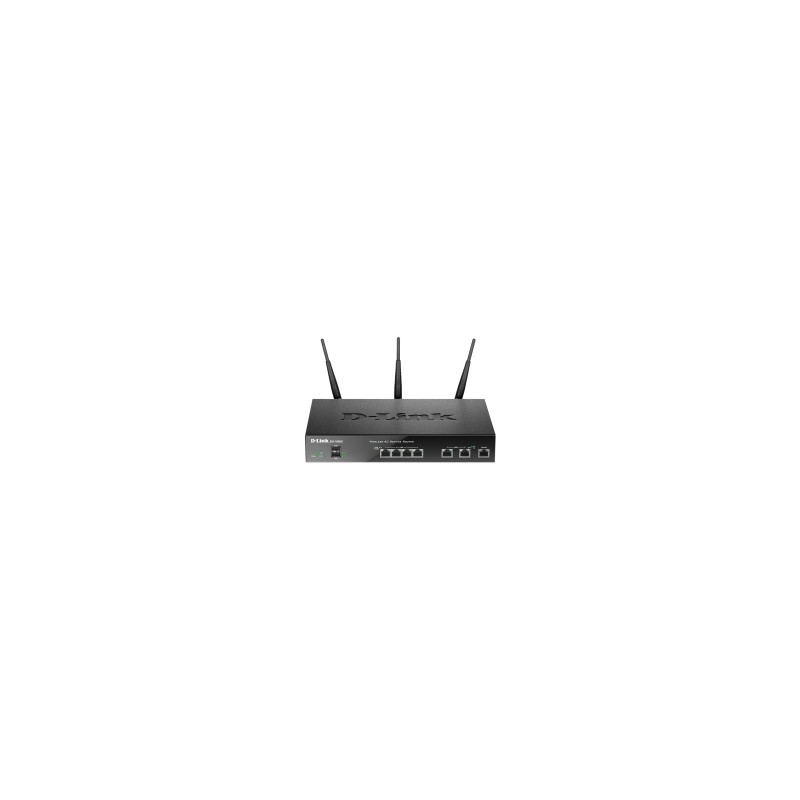

D-Link DSR-1000AC
D-Link DSR-1000AC D-Link DSR-1000AC D-Link DSR-1000AC D-Link DSR-1000AC

D-Link DSR-1000AC

2.4 GHz, 5 GHz, IEEE 802.11 ac/a/b/g/n, 2 x 10/100/1000 Mbps WAN, 4 x 10/100/1000 Mbps LAN

DSR-1000AC

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.



Comprehensive Management Capabilities



The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.



Web Authentication Capabilities



Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.



Complete and Robust VPN Features



A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.



Web Content Filtering for HTTP/HTTPs



The DSR-1000AC also provides a web content filtering feature to help administrators monitor, manage and control employees' Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword.
Depth180 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports4
Height44 mm
IP address filteringY
Operating temperature (T-T)0 - 40 °C
Width280 mm
Product colourBlack
Shipping (inner) case net weight10520 g
Quantity per shipping (inner) case4 pc(s)
Shipping (inner) case gross weight11329 g
Pallet gross weight (air)429844 g
Number of cartons per pallet (air)36
Quantity per pallet (air)144 pc(s)
Pallet height (air)1419 mm
Pallet gross weight (sea)565792 g
Number of cartons per pallet (sea)48
Quantity per pallet (sea)192 pc(s)
Pallet height (sea)1842 mm
