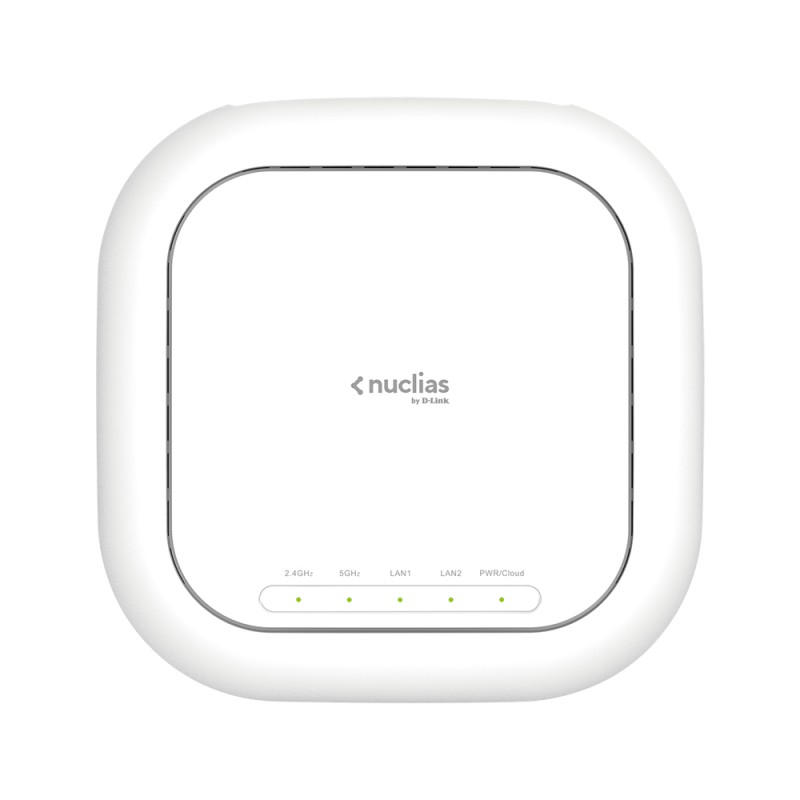

D-Link DBA-2520P
D-Link DBA-2520P D-Link DBA-2520P D-Link DBA-2520P D-Link DBA-2520P D-Link DBA-2520P

D-Link DBA-2520P

DBA-2520P, 1.9 Gbps, 2.4/5 GHz, PoE, 224.5x223.85x50 mm

DBA-2520P

In Stock

Cloud Networking, Refreshed

The DBA-2520P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.



Built for Heavy Workloads

The DBA-2520P delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 1.9Gbps, and 3 x 3 MIMO (three spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2520P’s channel selection, transmission power, and maximum number of client connections.



Advanced Management & Security

The Nuclias Cloud interface gives lets admins easily manage Layer-2 features, such as VLANs and Spanning Tree Protocol (STP). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.



Full PoE Support

The DBA-2520P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.
CertificationCE B, FCC B, UL, IC B
Depth223.85 mm
Ethernet LAN (RJ-45) ports2
Height50 mm
Operating temperature (T-T)0 - 40 °C
Weight811 g
Width224.5 mm
Product colourWhite
Number of SSID supported16
Maximum data transfer rate (2.4 GHz)600 Mbit/s
Maximum data transfer rate (5 GHz)1299 Mbit/s
Antenna direction typeomni-directional

dba-2520p.pdf

D-Link DBA-2520P Data Sheet

Download (3.51M)
