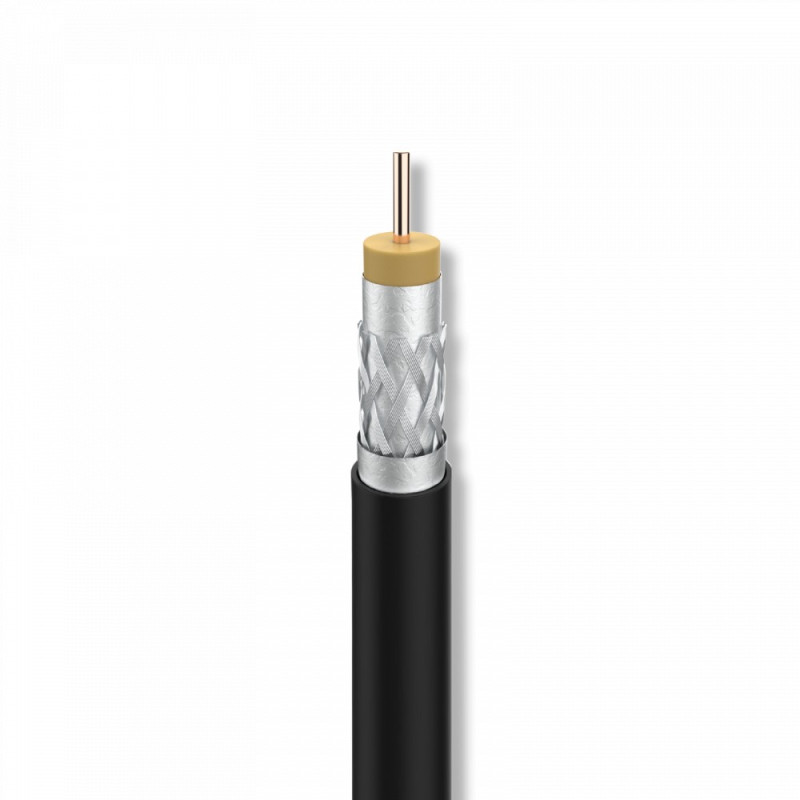

SK2005plus Coaxial cable, 18AtC

• Copper inner conductor and copper braid
• Class A shielded
• Cca Euroclass

• External UV-resistant LSFH sheath, black colour
• 75 Ohm characteristic impedance
• 250m wooden reel

Class A Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A, according to their structural properties:

• For 5 MHz - 30 MHz => TI < 5 mΩ/m
• For 5 MHz - 1000 MHz => SA > 85 dB
• For 1000 MHz - 2000 MHz => SA > 75 dB
• For 2000 MHz - 3000 MHz => SA > 65 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.
