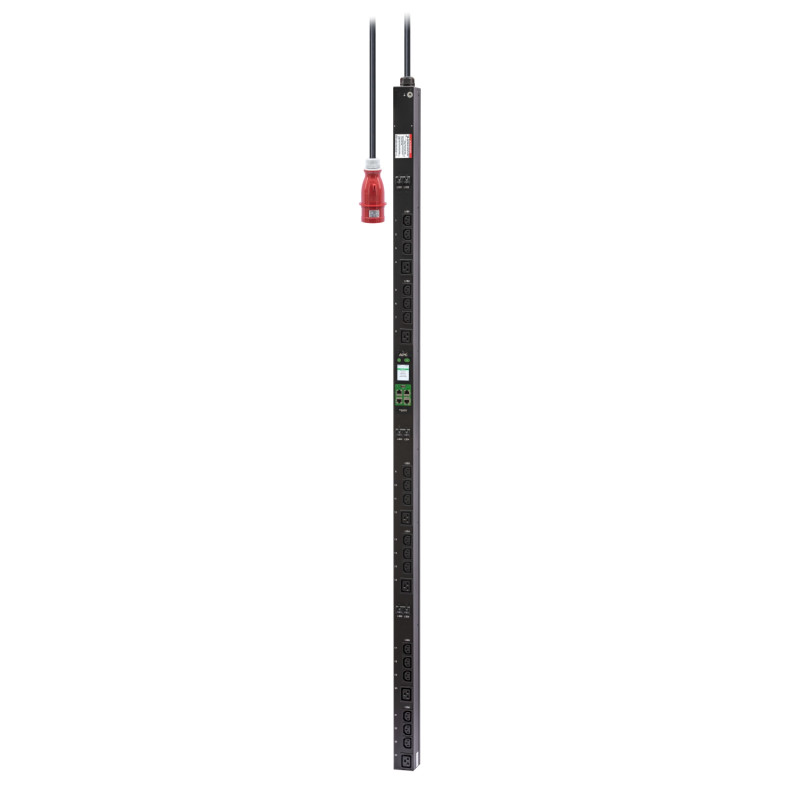

APC EPDU2232MBO
APC EPDU2232MBO APC EPDU2232MBO

APC EPDU2232MBO

Easy Rack PDU, Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet

epdu2232mbo

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Easy Metered-by-outlet rack PDU EPDU2232MB provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232MBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).
CertificationCE, TUV, EN 62368-1, RCM, UKCA
Depth56 mm
DisplayLCD
Height1800 mm
Housing materialAluminium
Operating temperature (T-T)-5 - 50 °C
Weight8380 g
Width55 mm
Product colourBlack
Compliance certificatesCE,RCM,REACH,RoHS,cTUVus,UKCA

epdu2232mbo.pdf

APC EPDU2232MBO Data Sheet

Download (97.07k)
