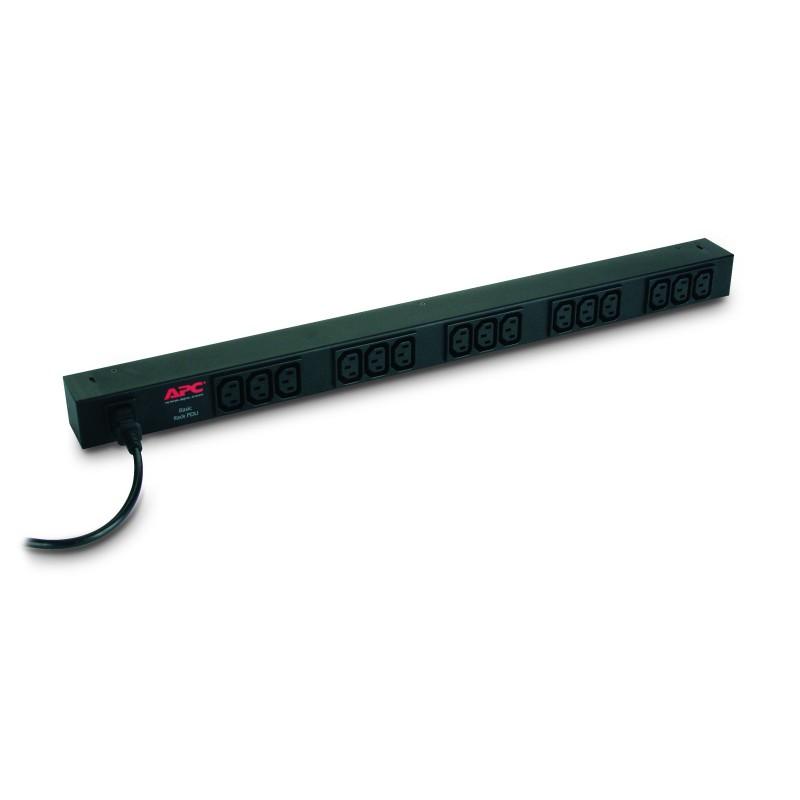

APC Basic Rack PDU AP9568
APC Basic Rack PDU AP9568 APC Basic Rack PDU AP9568 APC Basic Rack PDU AP9568

APC RACK PDU BASIC ZERO U 10A 230V

Rack PDU,Basic,Zero U,10A,230V, (15)C13

AP9568

In Stock

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13


Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities


Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit



Output:


Output Voltage(s) (main only) - 208, 230 V


Maximum Total Current Draw per Phase - 10 A


Output Connections - (15)IEC 320 C13


Input:


Nominal input voltage - 208, 230


Input frequency (Hz) - 50/60 Hz


Input Connection Type - IEC-320 C14


Cord Length - 6.5 feet ( 1.98 meters )


Acceptable Input Voltage - 200-240 VAC


Maximum Input Current per phase - 10.0 A


Load Capacity - 2300


Operating temperature (T-T)0 - 45 °C
Weight2000 g
