APC NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides
APC NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides APC NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides APC NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides

APC NetShelter SX

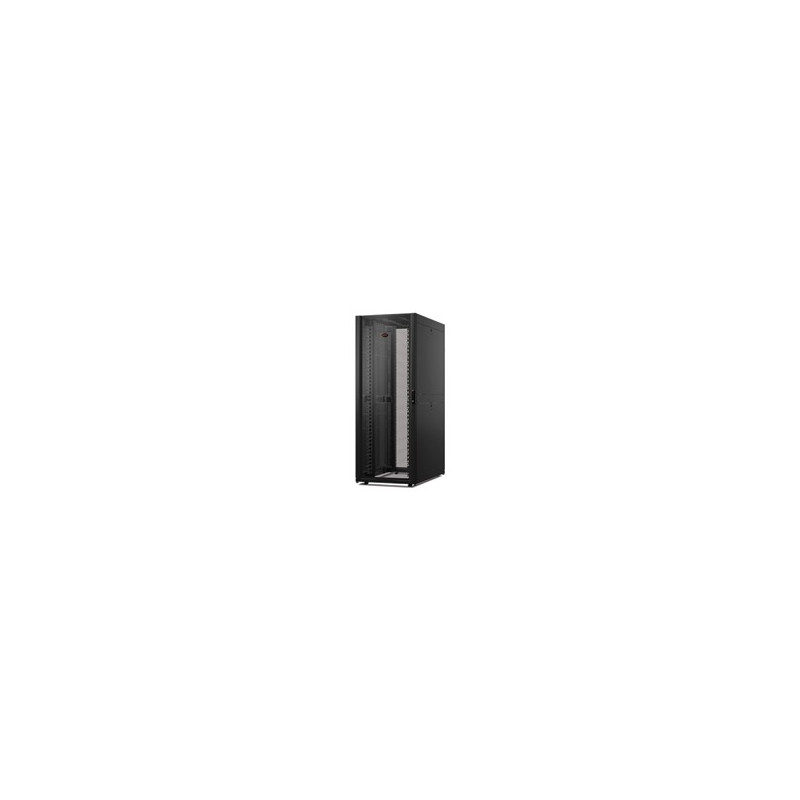

NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides

AR3340

In Stock

Integrated high density cable management

Decrease installation time while supporting the cabling needs of large networking switches.



Cable protection and pass-through

Smooth plastic fingers provide proper bend radius.



Optimized enclosure design for side-to-side airflow

Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.



Improved cable access

Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.



High density cable management

The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.



Guaranteed Compatability

Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter enclosure.



Facilitates overhead cable management

Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.



Integrated with APC InfraStruXure products

APC cooling, power distribution, and cable management products work seamlessly with the enclosures to provide a complete infrastructure support system.



Cable Access

Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.



Simple Selection

No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers.



Ventilated

Perforated front and rear doors provide ample ventilation for rack-mount equipment.



Quick release doors

Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.



Half-height side panels

Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.



Rear Cable Management channels

Integrated and adjustable rear channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers.



Adjustable mounting rails

The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. U positions are numbered front and back for rapid installation of equipment.



Split rear doors

Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.



Castors and adjustable leveling feet

Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.



Joining capability

Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure.



Structural Stability

A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3000 lb (1364 kg) static and 2250 lb (1023 kg) dynamic load ratings.



Integrated electrical grounding

The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
CertificationUL 60950-1, RoHS, REACH
Weight161360 g
