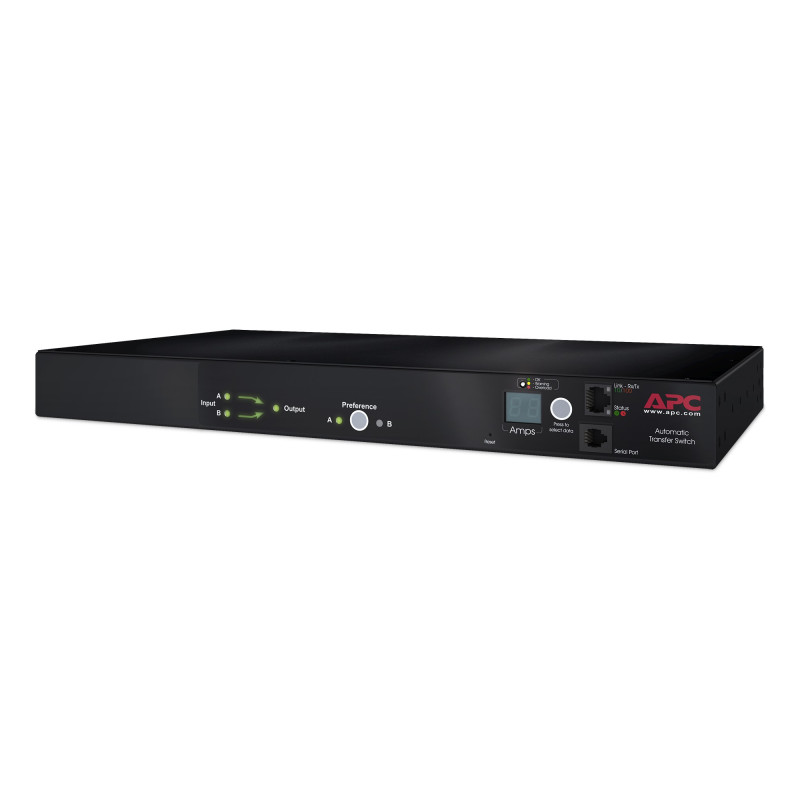

APC Rack ATS AP7722A
APC Rack ATS AP7722A APC Rack ATS AP7722A APC Rack ATS AP7722A APC Rack ATS AP7722A

APC Rack-mount Transfer Switches

Rack ATS, 16A, 230V, (2)IEC 309 in, (1)IEC 309 Out, Input: 200V, 208V, 230V, Output: 230V, Cord Length: 0.91m, Black

AP7722A

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Quick Transfer Rate

Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.





Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.



Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.



Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
CertificationC-tick, CE, EN 55022 Class A, EN 55024, GOST, TUV, VCCI Class A, REACH
Operating temperature (T-T)-5 - 45 °C
Weight4210 g
