Aten KL1508Ai
Aten KL1508Ai Aten KL1508Ai

Aten KL1508Ai

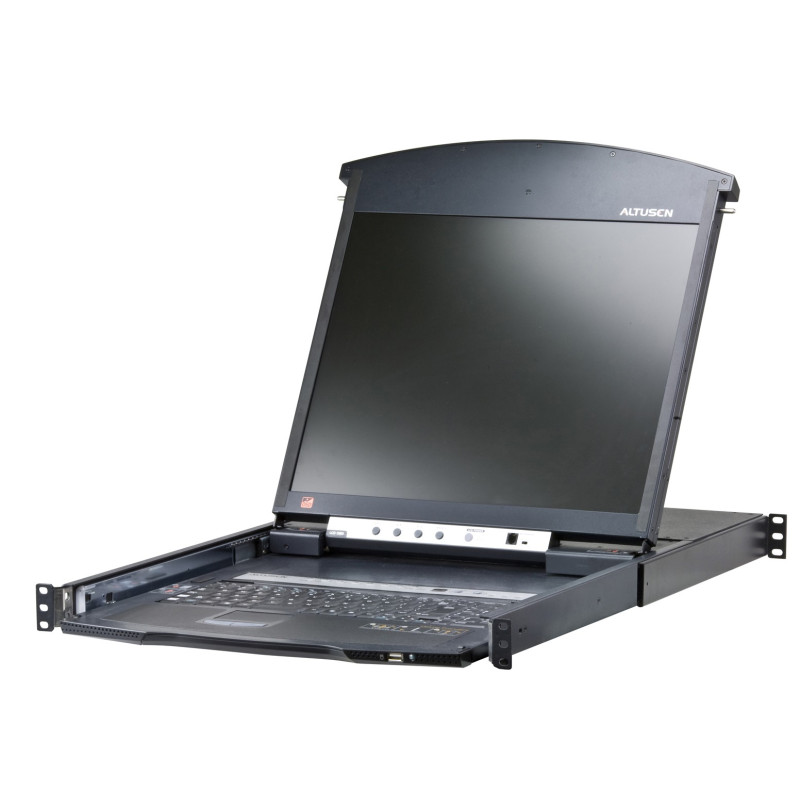

8-Port 17" LCD Cat5e/6 KVM Over IP Switch (Dual Rail)

KL1508AIM

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Hardware

- Integrated KVM console with 17¨ or 19¨ LCD monitor in a Dual Rail housing

- A single console controls up to 8 computers

- Daisy chain up to 15 additional KVM switches to control up to 128 computers*

- One bus for remote KVM over IP access

- Space-saving RJ-45 connectors and Cat 5e/6 cabling

- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types

- Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)

- Multiplatform support: PC, Mac, Sun and Serial

- Supports external USB mouse

- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space

- Dual Rail – LCD monitor slides independently of the keyboard/touchpad

- LCD module rotates up to 120 degrees for a more comfortable viewing angle

- Console lock – enables the console drawer to remain securely locked away in position when not in use

- LCD power button helps save energy and prolong displays´ life



Management

- Up to 64 user accounts – up to 32 concurrent remote logins

- End session feature – administrators can terminate any running session

- Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch

- Port Share Mode allows multiple users to gain access to a server simultaneously

- Remote power control for attached Power Over the NET™ devices

- Integration with ALTUSEN CC2000 Management software

- Event logging and Windows-based Log Server support

- Local Log Event

- Firmware upgradeable

- IPv6 capable



Easy-to-Use Interface

- Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI

- Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed

- Panel Array Mode™

- Keyboard broadcast* – keyboard input can be duplicated on all the attached servers



Advanced Security

- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

- 128-bit SSL encryption to protect password when users log in

- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption

- IP/MAC Filter support for enhanced security protection

- Configurable user and group permissions for server access and control



Virtual Remote Desktop

- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

- Full-screen or sizable and scalable Virtual Remote Desktop

- Message board feature allows logged in users to communicate with each other

- Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements

- On-screen keyboard with multi language support

- BIOS-level access



Package Contents

- 1x KL1508Ai Dual Rail LCD KVM Switch

- 1x 1ADP-0005-005G Power Cord

- 1x Standard Rack Mount Kit

- 1x Firmware Upgrade Cable

- 1x User Instructions
Connectivity technologyWired
Depth701.2 mm
DisplayLCD
Ethernet LANYes
Ethernet LAN (RJ-45) ports8
Height44 mm
MaterialMetal
Maximum resolution1600 x 1200 pixels
Operating temperature (T-T)0 - 40 °C
Weight15960 g
Width480 mm
