24 Port Shielded Cat5e RJ45 Patch Panel
24 Port Shielded Cat5e RJ45 Patch Panel 24 Port Shielded Cat5e RJ45 Patch Panel

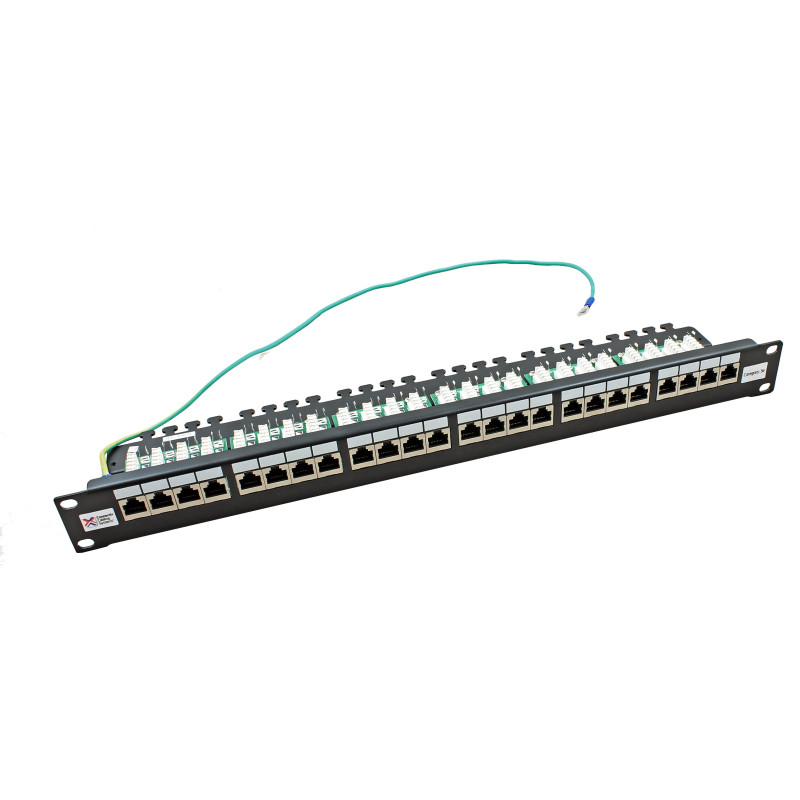

24 Port Cat 5e FTP Shielded 20/20 Right Angled Patch Panel

Right Angled High density 24 Shielded FTP ports in 1u of space

009-002-001-01

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Connectix 2020 Series FTP Patch Panel is an alternative to the Standard Enhanced Category 5e FTP Panel. It offers the same Enhanced Category 5e performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear of the panel, making termination and cable management easier.

All sockets in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided.

Enhanced Category 5e panels provide exceptional performance for high speed LANs including Gigabit Ethernet applications in an easy to use format. When combined with Connectix Enhanced Category 5e FTP Modules and Cable, the link will perform well in excess of the Enhanced Category 5e specifications.

Cat 5e Shielded Patch Panel Details:

Features:

  • Easy to install
  • Suitable for Gigabit Ethernet applications
  • High Density 24 Port
  • Rear cover to protect termination and improve shielding
  • Mix and match copper and fibre in one panel
  • Manufactured in the UK



Specification:

  • Width - 483mm (19”)
  • Depth - 98mm
  • Height - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
  • Finish - Matte black polyester paint
  • Socket Labels - Write-on silk screen on panel front
  • Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
  • IDC Labelling - Colour coded to T568B
  • IDC Blocks - Industry standard 4 way IDCs
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5e Specification
