24 Port Cat5e CCS 2020 Right Angled Patch Panel
24 Port Cat5e CCS 2020 Right Angled Patch Panel 24 Port Cat5e CCS 2020 Right Angled Patch Panel

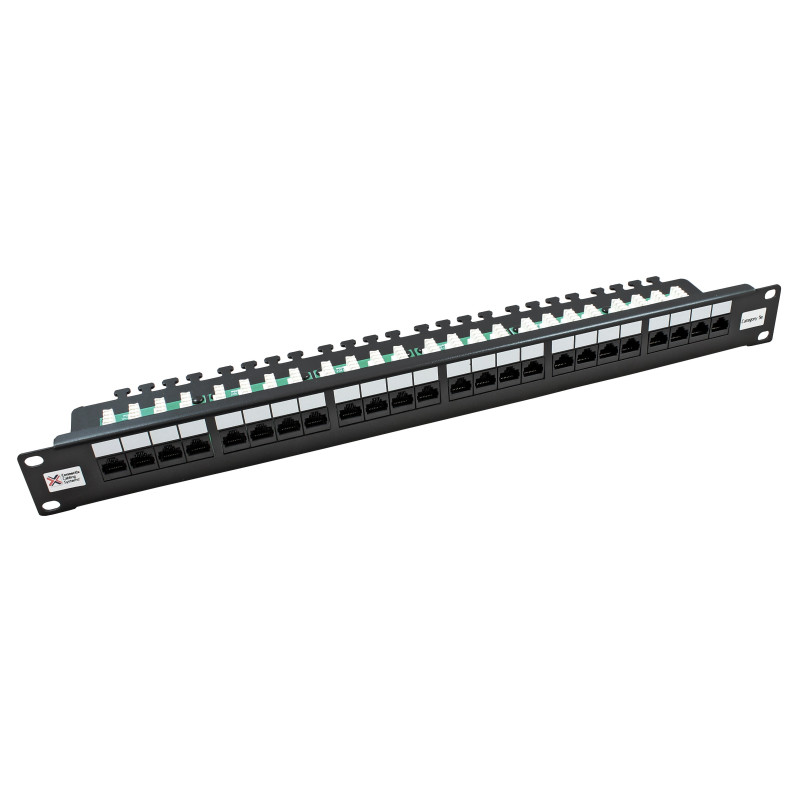

24 Port Cat 5e UTP 20/20 Right Angled Patch Panel

Right Angled High density 24 ports in 1u of space

009-001-001-01

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Connectix 2020 Series Patch Panel is an alternative to The Enhanced Category 5e High Density Panel. It offers the same Enhanced Category 5e performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear of the panel, making termination and cable management easier.

Connectix Enhanced Category 5e 24 Way Panels achieve optimum transmission performance by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features write on designation labels, which also provide an ideal surface for application of custom printed labels.

This panel offers extended PowerSum characteristics and exceeds the ANSI/TIA-568-C specifications. When combined with Connectix Enhanced Category 5e Modules and UTP Cable the link will perform well in excess of the Enhanced Category 5e Specification.

LC, SC, ST and FC fibre modules are also available, complete with a Starlight compatible gland hole and integrated management tray. Blank modules can be included for future expansion.

Details:

Features:

  • Easy to install
  • Simple cable management
  • Suitable for Gigabit Ethernet applications
  • Can be configured with copper and fibre to suit individual requirements
  • Mix and match copper and fibre in one panel



Sepcification:

  • Width - 483mm (19”)
  • Depth - 95mm
  • Height - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
  • Finish - Matte black polyester paint
  • Socket Labels - Write-on silk screen on panel front
  • Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
  • IDC Labelling - Colour coded to T568B
  • IDC Blocks - Industry standard 4 way IDC’s
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5e Specification
