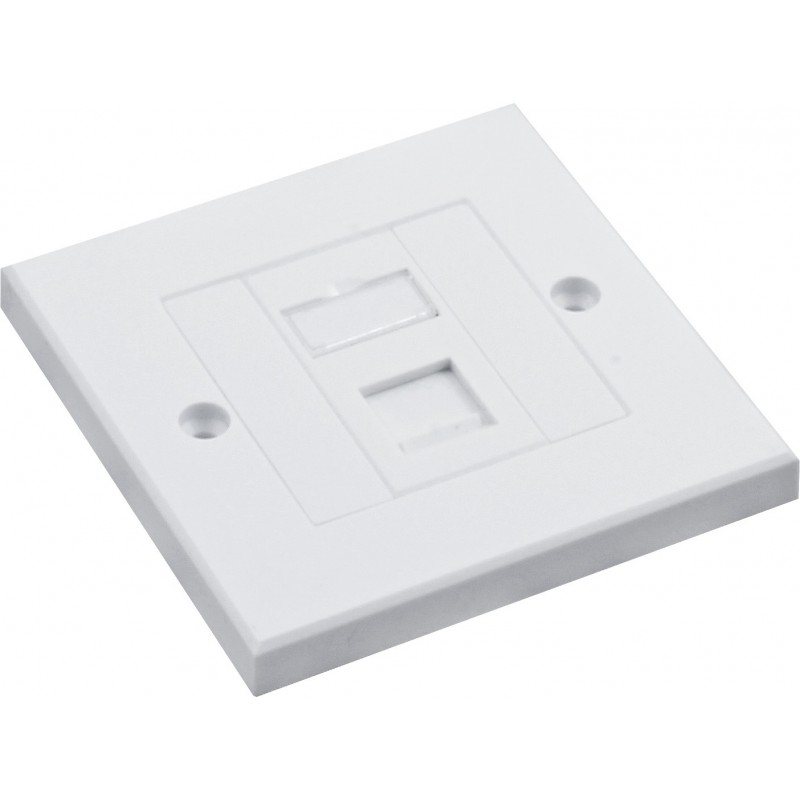

Cat6 UTP RJ45 Modules with Faceplate
Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate Cat6 UTP RJ45 Modules with Faceplate

Cat6 UTP RJ45 Modules with Faceplate

Faceplates pre-loaded with Cat6 UTP Modules. Available with 1 or 2 or 4 modules

008-001-005-31

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Connectix Enhanced Category 6 way loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate.

  • Ready assembled outlet, ready for installation.
  • Exceeds Enhanced Cat6 specification when used alongside our cable and patch panels

Details:

Module Details

The Connectix Category 6 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and UTP Cable the user will get a link performance exceeding the Category 6 requirements.

Features:

  • Suitable for Gigabit Ethernet applications
  • Shallow design requires minimal back-box depth
  • Interchangeable with all other Euro modules and quarter blanks
  • Fits all standard Euro faceplates
  • Individually QA tested



Specification:

  • Width - 25mm
  • Depth - 21mm
  • Height - 50mm
  • Back-box Depth - Minimum 15mm recommended
  • Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
  • Finish - High gloss
  • IDC Labels - Individual colour coded to T568B
  • IDC Blocks - 4 way industry standard IDC blocks
  • Conforms to - ANSI/TIA-568-C Category 6 Specification
