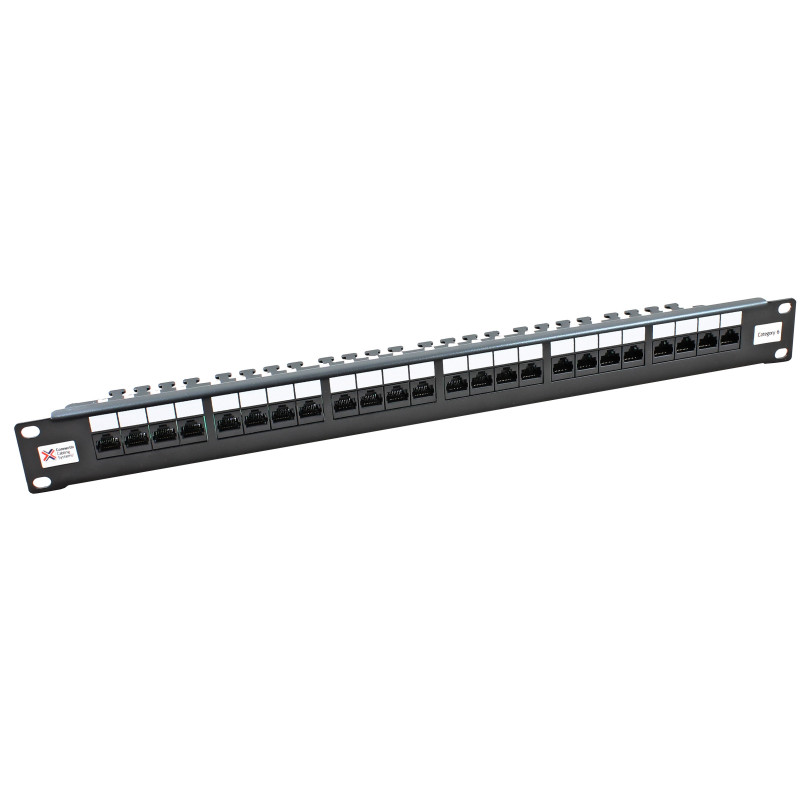

24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel
24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel 24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel

24 Port Cat 6 UTP 20/20 Right Angled Patch Panel

Right Angled 24 Cat 6 ports in 1u of space

009-001-001-40

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Connectix 2020 Series Patch Panel is an alternative to the Category 6 High Density Panel. It offers the same Category 6 performance as the standard panel but has been designed to present the cable termination IDCs horizontally on a tray at the rear , making termination and cable management easier.

Category 6 High Density 24 way panels achieve optimum transmission performances by incorporating the highest quality components and innovative on-board compensation techniques.

This panels offer extended PowerSum characteristics and exceeds the ANSI/TIA-568-C specifications. When combined with Connectix Category 6 Modules and UTP Cable the link will perform well in excess of the Category 6 specification.

LC, SC, ST and FC fibre modules are also available, complete with a Starlight compatible gland hole and integrated management tray. Blank modules can be included for future expansion.

Details:

Features:

  • Easy to install
  • Simple cable management
  • Suitable for Gigabit Ethernet applications
  • Adjustable recessed mounting version available
  • Mix and match copper and fibre in one panel



Specifications:

  • Width - 483mm (19”)
  • Depth - 95mm
  • Height - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01
  • Finish - Matt black polyester paint
  • Socket Labels - Write-on silk screen on panel front
  • Cable Management - Improved cabling facility with easy to use cable tie positions for left and right cable entry
  • IDC Labelling - Colour coded to T568B
  • IDC Blocks - Industry standard 4 way IDCs
  • Conforms to - ANSI/TIA-568-C Category 6 Specification
