Half U Cat 6 UTP Elite Patch Panel

0.5u Cat 6 UTP Elite Patch Panel

24 Port CCS Cat 6 UTP 0.5u Patch Panel

009-001-003-06

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

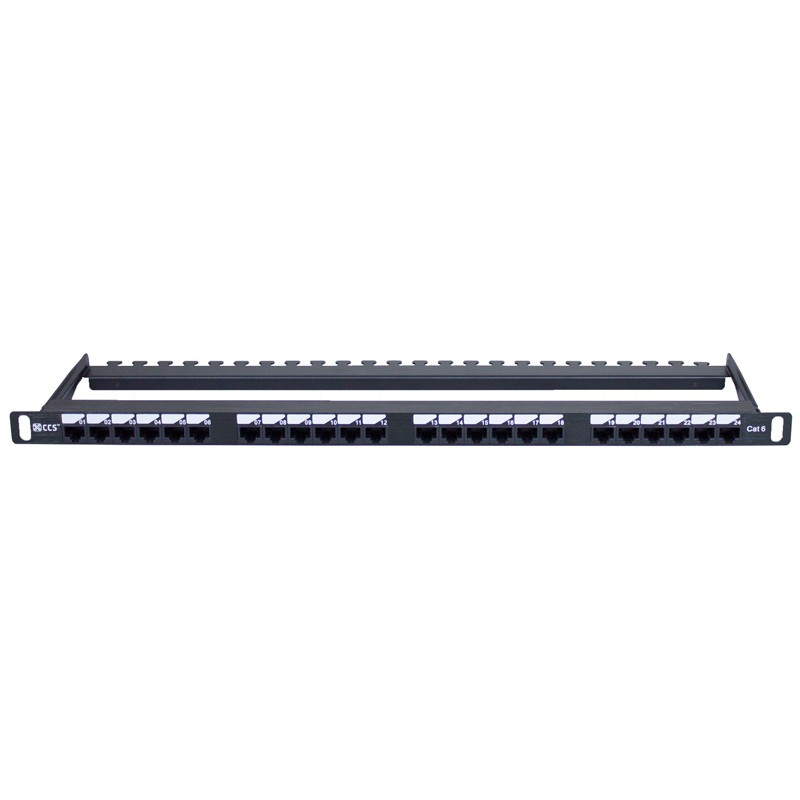

Connectix Category 6 0.5u Elite Patch Panels have been designed to solve space issues within congested equipment rack environments. Installation projects often required networking upgrades, retrospective cabling links for expansion and general moves, adds and changes. In these situations, existing cabinets may lack the U space needed for additional network connections, or perhaps have spare half U slots presented from equipment rack layout.

Connectix 0.5u Elite Patch Panels are the compact patch panel solution, providing IDC punchdown at the rear and port ID presentation for cable adminstrition. Connectix Elite Patch Panels provide the performance needed for communications networks and applications supporting Gigabit Ethernet and fully comply with ISO, Cenelec and ANSI/TIA category 6 standards.

Features & Benefits

• 0.5u height measuring 22mm
• Small, compact and attractive design
• 19” rack mountable
• Individually colour coded IDCs for ease of termination
• Individually QA Tested
• Connectix 25 Year System and Product Warranty available
Depth30mm
Height0.5u (22 mm)
MaterialPanel Body: Aluminium Extrusion. Management Tray: Mild steel sheet CR4 to BSEN10130-1999 DC01
Width483mm (19")
Conforms toANSI/TIA-568-C Category 6 Specification
