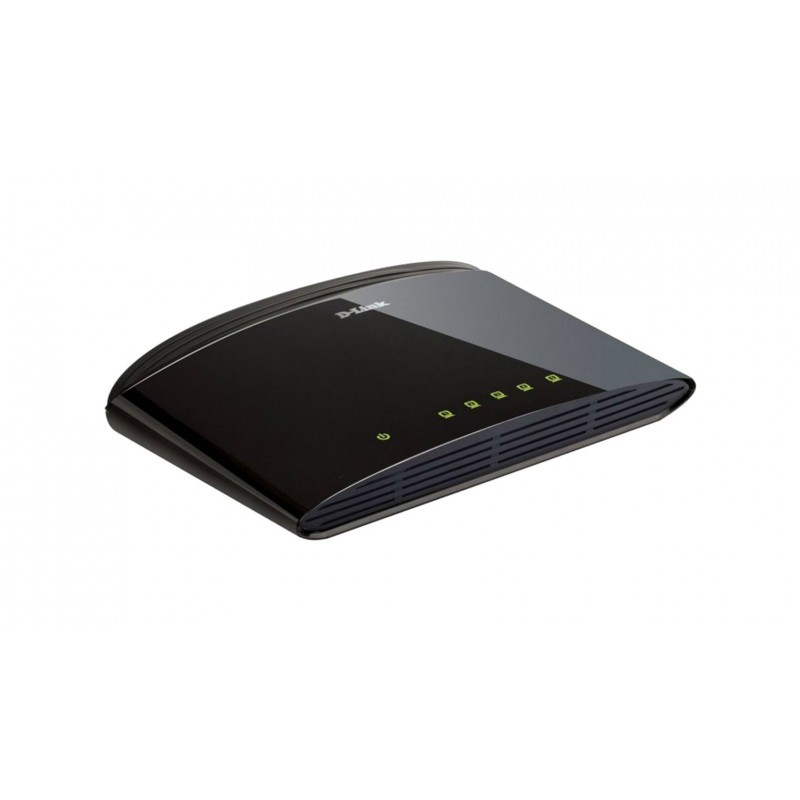

D-Link DES-1005D
D-Link DES-1005D D-Link DES-1005D D-Link DES-1005D

D-Link 5-Port 10/100Mbps Switch for SOHO

5-Port 10/100Mbps Switch for SOHO

DES-1005D/B

Stock Due 02-04-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The DES-1005D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.





5 Auto-sensing 10/100Mbps Ports

The switch comes with 5 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet ad Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX

and 10BASE-T, as well as between full- and half-duplex.



Flow Control for Secure Transmission

All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow

control is available in the full-duplex mode.



Auto-negotiation of MDI/MDIX Cross Over

All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.



SOHO Plug-and-Play

With 5 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex.



Desktop Power

With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.



10/100Mbps Network Kit

For network starters, a convenient kit is available for ready installation. This kit includes a DES-1005D switch, 2 10/100Mbps Fast Ethernet PCI cards, and 2 6-meter (20-foot) UTP cables.



Features:

5 10/100Mbps ports

Per-port auto MDI/MDIX

All ports support full/half-duplex, network speed autonegotiation

Per-port 802.3x flow control for protection against data loss

Auto-learning of network configuration

Secure store-and-forward switching scheme

Auto-correction of reverse twisted-pair polarity

Compact palm-sized
Operating temperature (T-T)0 - 50 °C
