Cat 7a S/FTP B2ca Solid Cable 500m Drum

Reference: 001-004-008-10

In Stock

Connectix Category 7a S/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

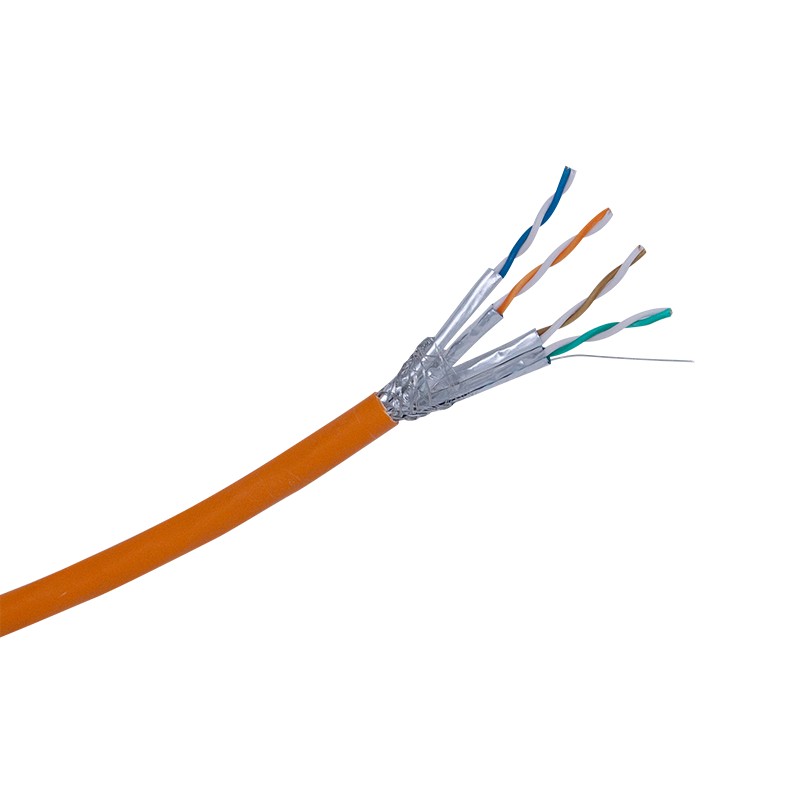

The cable consists of 4 screened pairs and a drain wire. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. It has a euroclass rating of Bca, making it the ideal choice when BS6701 compliance is a requirement Delivered on 500m Drums.

Features & Benefits

Suitable for structured premises cabling.
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class FA applications.
ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000 Base-T, 10G Base-T. (IEEE 802.3).
Token Ring4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s. (IEEE 802.5).
Euroclass B2ca

Conforms to	IANSI/TIA 568C.2, ISO/IEC 11801
Fire Rating	B2ca,s1a,d1,a1
DC Resistance	< 9.38 Ω /100 m
Conductor	Solid - Bare copper wire (AWG 23)
Drain Wire	Tinned copper
Insulation Material	Skin-foam-skin PE Ø 1.45 mm
Insulation Diameter	1.330 +/- 0.05mm
Sheath Thickness	0.55+/-0.1mm
Sheath External OD	7.8 +/- 0.5mm
Sheath Surface	Clean
Sheath Colour	Orange - RAL 2008
Sheath Material	LSZH(Complies RoHs)
Core Colour	1. White/Blue, 2. White/Orange, 3. White/Green, 4.White/Brown
Surface Printing Colour	Black
Surface Printing Letter Height	3.0 +/-0.3mm
Supplied in	500m Drum
DC Resistance Unbalance max	2%
Capacitance Unbalance (pair to ground)	< 330 pF/100 m
Inner Screening Material	Alu / Mylar
Outer Screening Material	Aluminium-Magnesium Alloy 0.12mm
