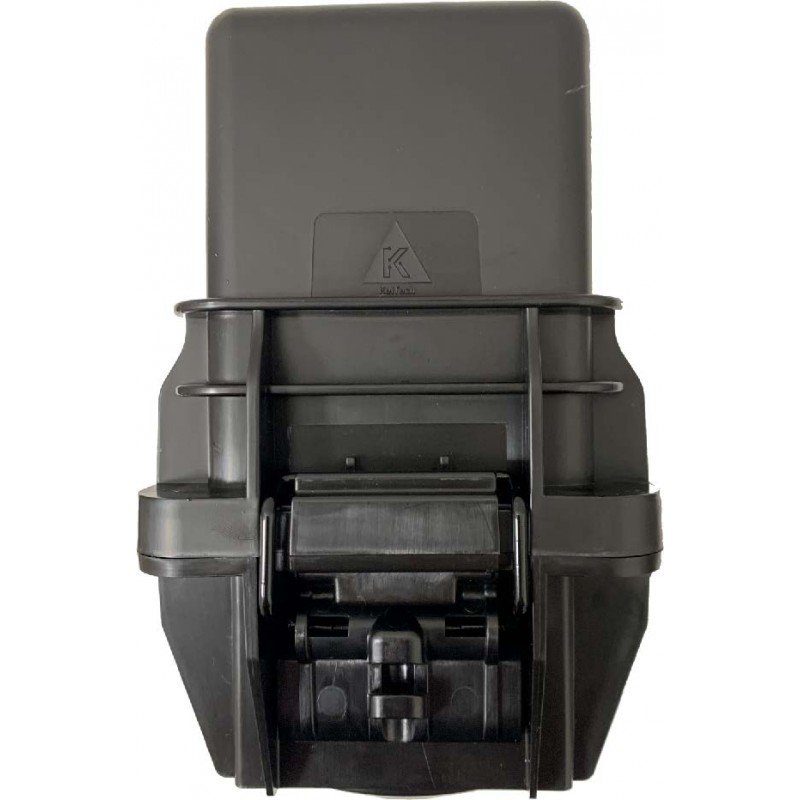

Connectix Fibre Optic Joint Enclosure FD0-Mini 8
Connectix Fibre Optic Joint Enclosure FD0-Mini 8 Connectix Fibre Optic Joint Enclosure FD0-Mini 8 Connectix Fibre Optic Joint Enclosure FD0-Mini 8

Connectix Fibre Optic Joint Enclosure FD0-Mini 8

009-007-015-02

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The FD0-Mini 8 is an environmentally IP68 sealed closure typically designed to connect FTTH drop cables to the distribution network. This
generic closure provides the function of splice and passive component integration in the external network. The FD0-Mini 8 has a very small
compact design for modern fibre optic deployments.


Management:
• Single ended IP68 base and dome are sealed with a 4 way latch and O-ring System..
• The Closure has one mechanical oval port that allows for the looping of the distribution cable.
• The splice tray uses splice protection sleeves.
• Compatible with most common cable types: e.g. loose tube micro cable.
• The Closure has one mechanical oval port that allows for the looping of the distribution cable.
• Drop cables can be spliced or pre-connected.


Storage:
• Uncut tubes can be stored safely in cable management slack basket.
• Mid Span fibres can be safely stored in the splice tray.
• Facilitates the use of pre-connected fibre cable.
• Storage for 1 x PLC Splitter in the interchanged splice tray.
• Excess Mid-span fibres can be safely stored in the splice tray or base of the closure.
• The interchanged splice tray provides a splice capacity of up to 8 fibres.
• Up to 2 x SC or 4 x LC adaptors in each port of the interchanged splice tray
• Storage for 1 x PLC Splitter.
