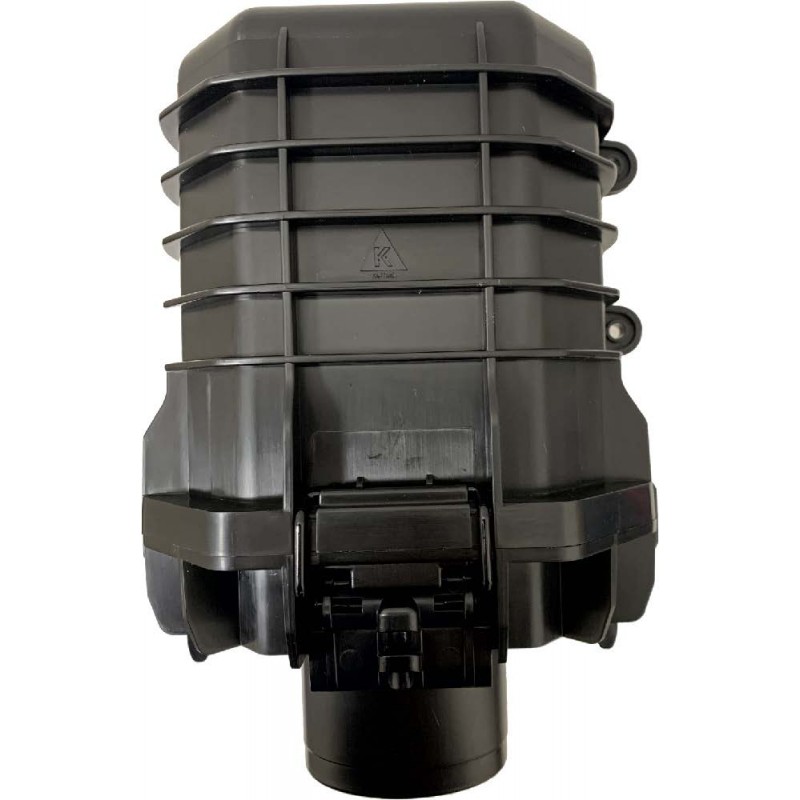

Connectix Fibre Optic Joint Enclosure FD1-96 48/96 Tray
Connectix Fibre Optic Joint Enclosure FD1-96 48/96 Tray Connectix Fibre Optic Joint Enclosure FD1-96 48/96 Tray

Connectix Fibre Optic Joint Enclosure FD1-96 48/96 Tray

009-007-015-05

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The FD1-96 is an environmentally IP68 sealed closure typically used for fibre optic cable distribution in FTTX Networks. This generic closure
provides the function of splice and passive component integration in the external network. The FD1-96 has a very small compact design for
modern fibre optic deployments.
Specification
Dimensions (mm) FD1-96
L 244mm
W1 139mm
W2 169mm
Fibres Splice Trays
Single Element Splice Capacity 12-24 Fibres 4 x Tray 48-96 Fibres
Adaptors 16 SC Footprint/16 LC each 16 x Pre-Connected Fibres
Splice Capacity with adaptors 48 Fibres 16 x Drop Splice Fibres
Mechanical Seal Rating IP68

Management:
• The enclosure has one mechanical oval port and 1 round ports for cable access.
• Designed for use for aerial as well as underground distribution.
• Supports looping of the feeder cable through the oval port.
• Enables deployment of branch off cables as well as drop cables through various seals in the round ports.
• Accommodates both heat shrink or mechanical seals or even a combination thereof.


Storage:
• The enclosure has a footprint of up to 16 x SC or 16 x LC adaptors in each port.
• Uncut tubes can be stored safely in cable management slack basket.
• Mid Span fibres can be safely stored in the splice tray.
• Facilitates the use of pre-connected fibre cable.
• Space for 8 x PLC Splitters in total, two PLC Splitters per 24 Fib Splice tray.
