LC-SC/APC Patch Leads

LC - SC/APC Patch Leads

005-542

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

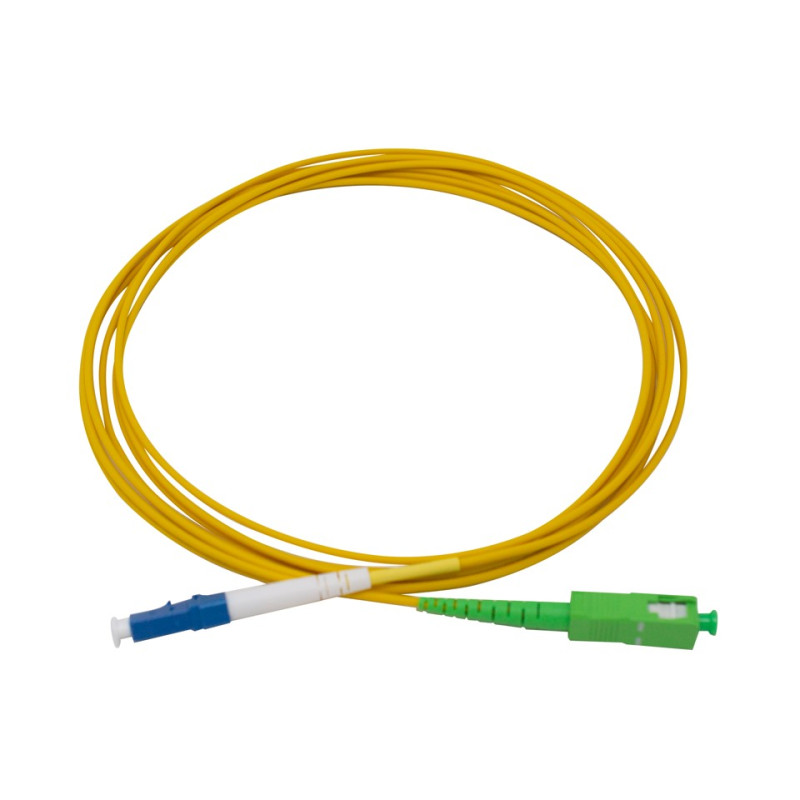

Commonly used widely in applications such as FTTX, gigabit passive optical network (GPON) and wavelength-division multiplexing (WDM), Connectix OS2 singlemode LC/APC or LC/PC -SC/APC patch leads are manufactured using bend insensitive G.657.A1 or G.675.A2 optical fibre, terminated with standards compliant connectors and 100% tested and certified.

Manufactured with a low smoke zero halogen sheath, Connectix LC/APC or LC/PC – SC/APC patch leads are ideal for connecting hardware within data centre exchanges or within enclosures, street cabinets and patching consumer end FTTX products.

Available in standard, premium and premium low-loss Senko connector formats, the LC/APC or LC/PC connector is a zirconia ceramic ferrule with choice of endface types including standard, step, and cone. These endface types allow for faster polishing, and lower insertion loss and back reflection when terminated within Connectix and Senko production procedures, while ensuring maximum repeatability.

The connector body is precision moulded and available in 900um as standard or 2.0mm long boot or 3.0mm long boot formats. The housing and boot are made from UL-rated material and Physical Contact (PC) version is also available.

Connectix offers a range of simplex and duplex LC/APC or LC/PC –SC/APC patch leads from stock and a custom length service with fastturnaround service.
