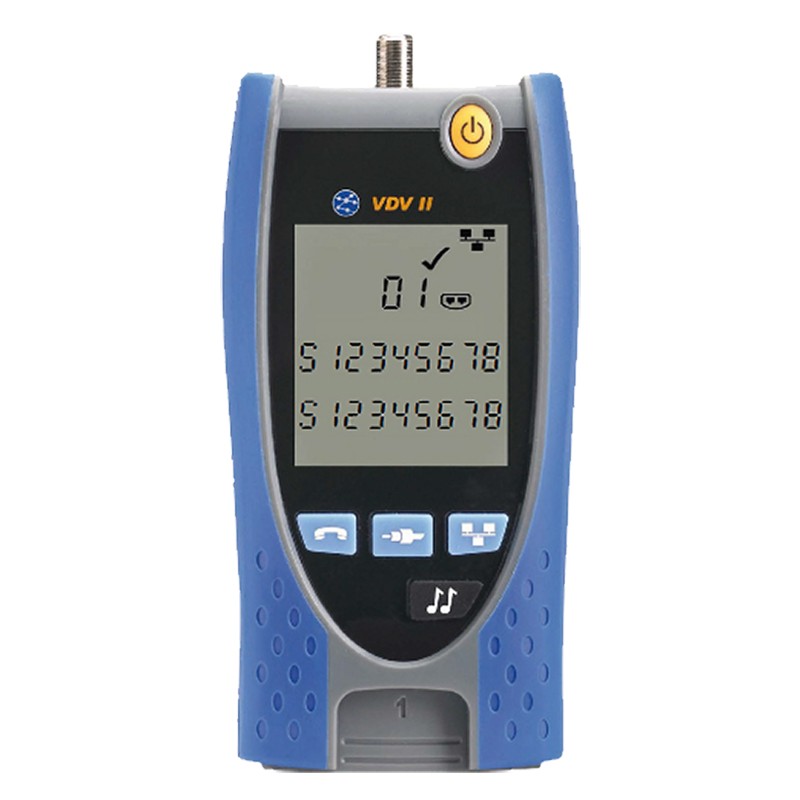

VDV II Cable Tester

The new VDV II Series are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling. Employing state-of-the-art technology, VDV II offers functionality not previously available in a wiremapper. The advanced wiremap engine accurately displays complex wiring faults instantaneously whilst TDR (Time Domain Reflectometry) aids troubleshooting and improves on-site productivity.

VDV II	VDV II Plus	VDV II Pro
Performs standard tests for copper cabling, including:	All the features of the VDV II including:	All the features of the VDV II Plus and...
Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing Wiremap for Miswires, Split Pairs, Shorts and Opens Analog Tone Generator Voltage Protection Shielded Cable Testing Single Screen Results	Larger 2.9" Display Backlight Hub Blink Cable Length Distance to Open Carry Case & Cables	Distance to Open / Short (TDR) PoE Detection with Voltage Information Media Service Detection Ethernet Detection with Network Rate and Duplex Information

	Accuracy The flagship VDV II Pro utilises TDR to accurately measure cable length and provide distance to fault information. TDR’s work by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur. This speeds up fault finding as well as minimising disruption and potential damage to fixtures and fixings.
	Speed With comprehensive details on faults such as opens, shorts, crossovers and split pairs, VDV II identifies wiring errors instantly. The integrated RJ11/RJ12 (voice), RJ45 (data) and F-Type (video) connectors allow faster testing of most types of low-voltage cables by eliminating the need for separate testers or adapters.
	Intelligence Connection issues are not always associated with cable faults, so VDV II Pro has the capability to help identify service related issues. By detecting the presence of voltage and checking polarity, VDV II Pro quickly determines which media service is running over the cable, such as ISDN, PBX and PoE (Power over Ethernet) resulting in faster fault diagnosis. Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information. Furthermore, to prevent potentially costly damage to the tester all VDV II’s are smart enough to know when they have been plugged into an outlet where voltage is present.
