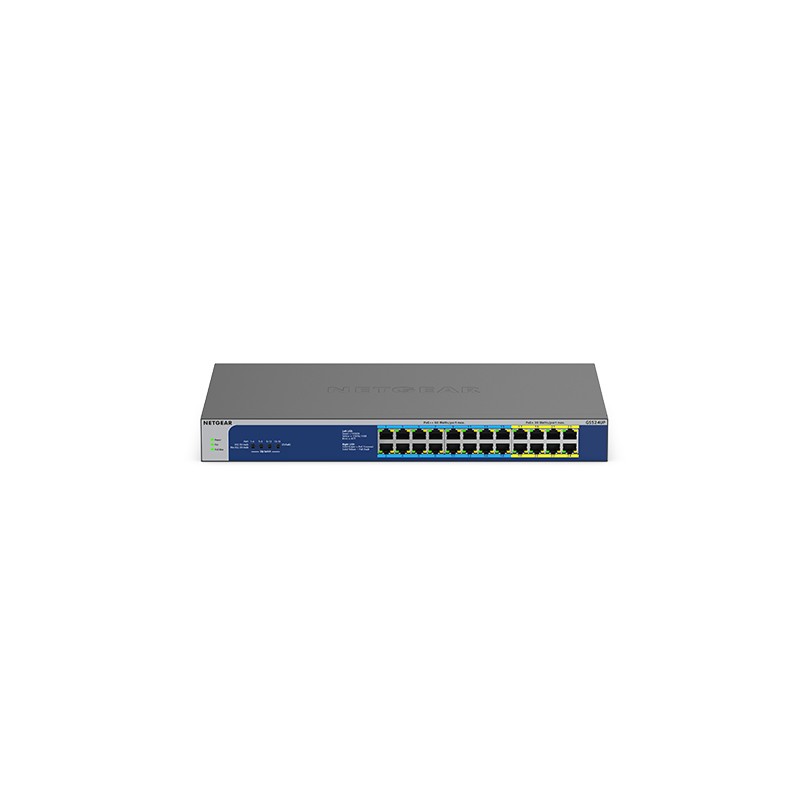

Netgear GS524UP
Netgear GS524UP Netgear GS524UP Netgear GS524UP Netgear GS524UP Netgear GS524UP Netgear GS524UP Netgear GS524UP

Netgear GS524UP

24-Port Gigabit Ethernet High-Power POE+ Unmanaged Switch With POE++ Ports

GS524UP-100EUS

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Instant Connectivity and Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.

The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.



Powerful Ultra60 PoE++

Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.

NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port.



PoE Mode

Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices.

- GS524UP by default uses 802.3bt standard, only compatible for bt standard devices

- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power

- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power

- If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
10G supportNo
Depth220 mm
Height43 mm
Housing materialMetal
Operating temperature (T-T)0 - 50 °C
Weight3100 g
Width390 mm
Product colourGrey
Half duplexY
Power over Ethernet (PoE) type supportedPoE+

gs524up-100eus.pdf

Netgear GS524UP Data Sheet

Download (375.23k)
