HomeConnectix Broadband SystemsRiser DistributionRiser BoxesMulti Customer Connection Enclosure
Multi Customer Connection Enclosure
Multi Customer Connection Enclosure Multi Customer Connection Enclosure

Multi Customer Connection Enclosure

MCCE

Enquire for Price & Lead time

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

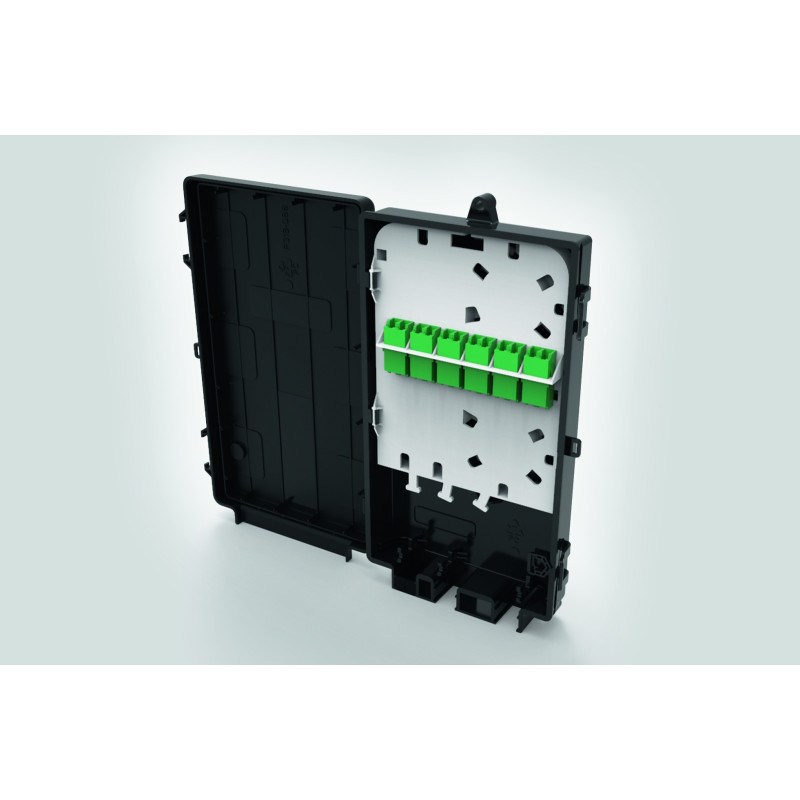

The Multi Customer Connection Enclosure (MCCE) has been designed as a Building Entry Point (BEP) to provide a fibre termination and network demarcation point external to the connected premise in a Fibre to the Home (FTTH) network. In addition to providing an external test point the enclosure can also accommodate up to 12 customer fibre connections.

The MCCE has an IP54 sealing performance with up to 6 entry/exit ports at the bottom of the enclosure which is suitable for cables or ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point.

Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout.

The MCCE manages up to 6 SC simplex or LC duplex adaptors and has features to secure a maximum of 30 fibre splices. The lid is hinged allowing quick and clear access to the internal fibre for splicing and termination and the lid can be replaced if damaged.

The MCCE can be supplied pre-loaded with fibre adaptors and pigtails as required.
