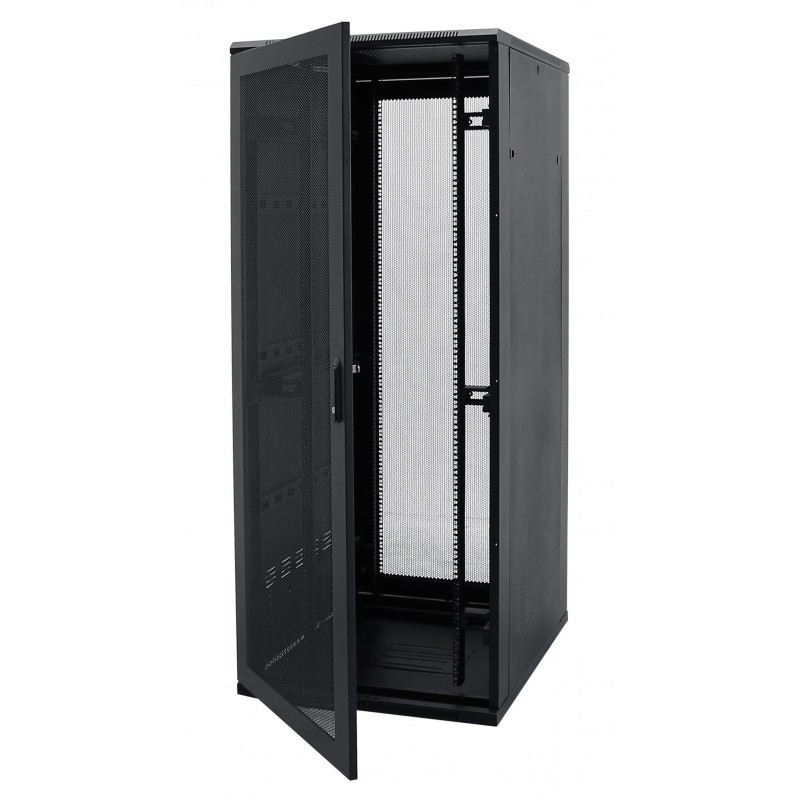

RackyRax 800mm x 1000mm Server Cabinet

RackyRax 800mm x 1000mm Server Cabinet

800mm Wide x 1000mm Deep Floor Standing Server Rack Cabinet

RR-F6-

In Stock

RackyRax 19” Server Cabinets combine all the features of a premium Server Rack Cabinet including the aesthetically pleasing design, without the price-point to match.

The cabinets are fitted with quick release front and rear perforated doors (approximately 60% open), fitted with lockable swing handles. The side panels can be fitted with cabinet locks.

The large floor aperture gives maximum cable access, plus there is cabling access in the top. All apertures are fitted with blanking plates as standard. These 800 wide cabinets have additional cable access next to the rack profiles to allow easy routing of cables from the front to the rear of the cabinet.

These Server Cabinets are available in various configurations and are supplied fully assembled on a pallet, but all cabinets can be easily dismantled if required. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Each Server Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Data Cabinets has been designed ensure easy installation and maintenance

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go – We also offer flat pack if you require it.

Features:

  • 800kg loading capacity (evenly distributed)
  • Lockable/removable mesh front door with steel surround
  • Lockable/removable mesh rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access
  • Flat pack option available

Dimensions By U Height

U HeightSize (HxWxD)Weight
18U902x800x1000 mm68.2 Kg
211035x800x1000 mm71 Kg
24U1180x800x1000 mm73.8 Kg
27U1302x800x1000 mm77.6Kg
42U1968x800x1000 mm116.8Kg
45U2103x800x1000 mm118.6 Kg



A full range of accessories are available to complement the cabinet including castors, shelves and vertical cable trays

Depth1000mm
Width600mm
