TP-LINK MC112CS 10/100Mbps WDM Media Converter
TP-LINK MC112CS 10/100Mbps WDM Media Converter TP-LINK MC112CS 10/100Mbps WDM Media Converter TP-LINK MC112CS 10/100Mbps WDM Media Converter TP-LINK MC112CS 10/100Mbps WDM Media Converter

TP-LINK 10/100Mbps WDM

MC112CS 1x 100M SC, 1x 100M RJ45, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

MC112CS

Stock Due 02-12-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

- Adopts WDM technology, transmitting and receiving data on one single fiber.

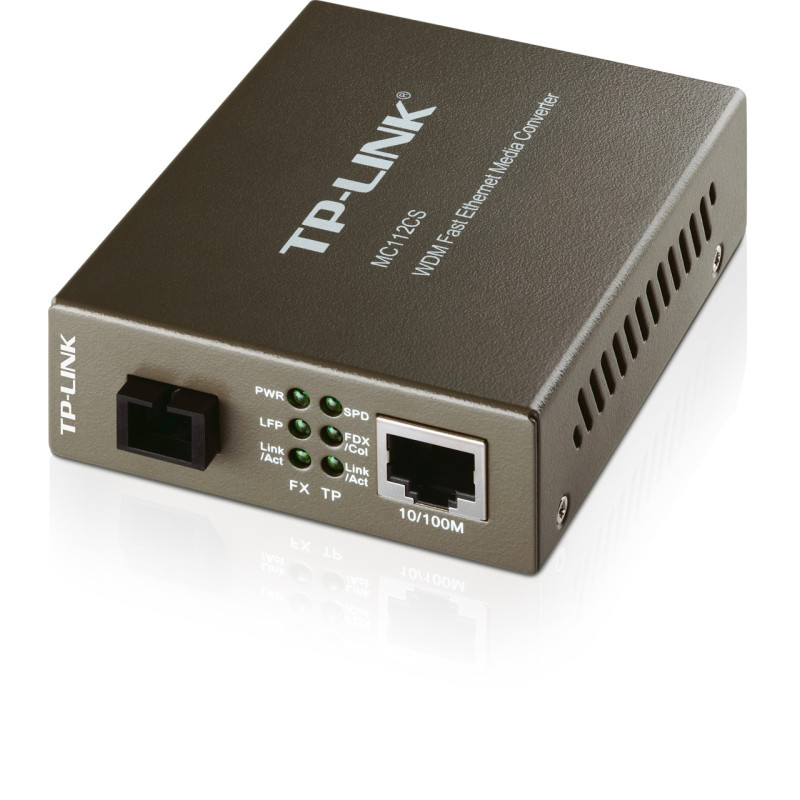

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.



Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
CertificationFCC, CE
Connectivity technologyWired
Operating temperature (T-T)0 - 40 °C
